VISION-GRID 3809

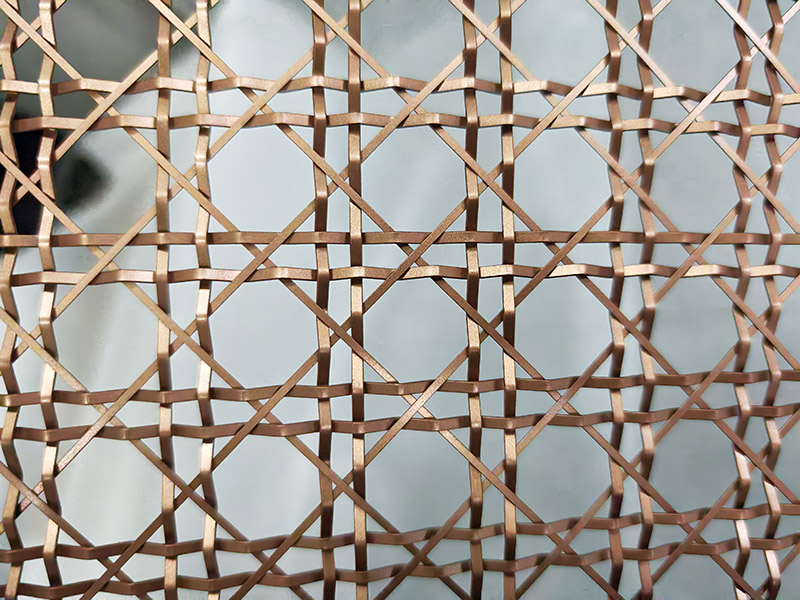

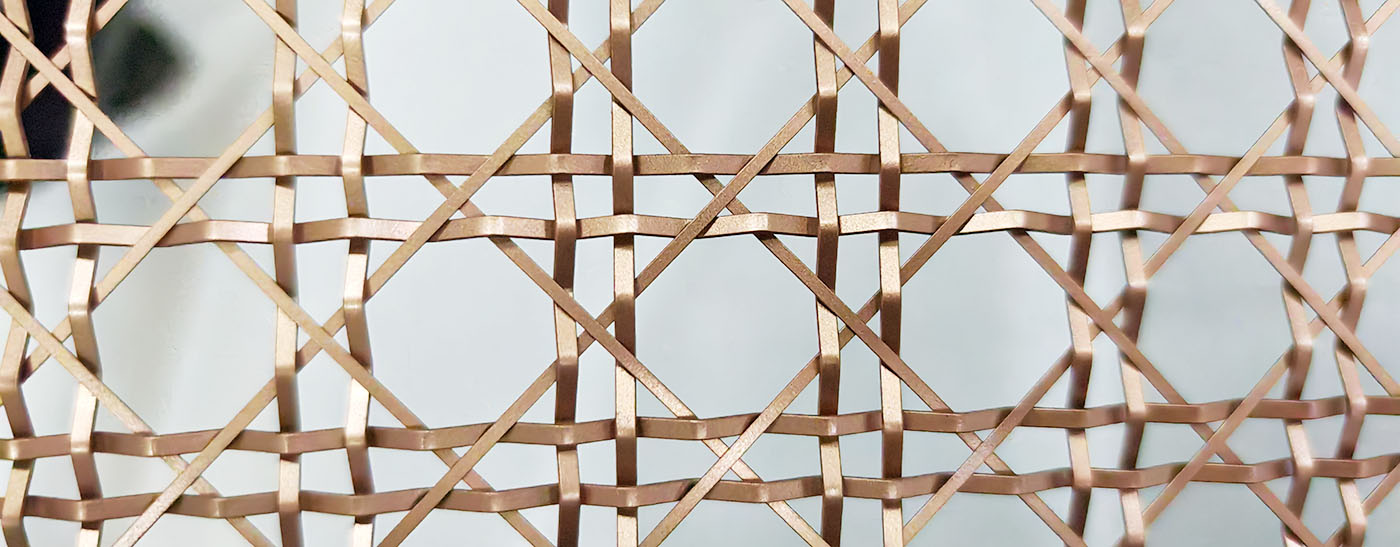

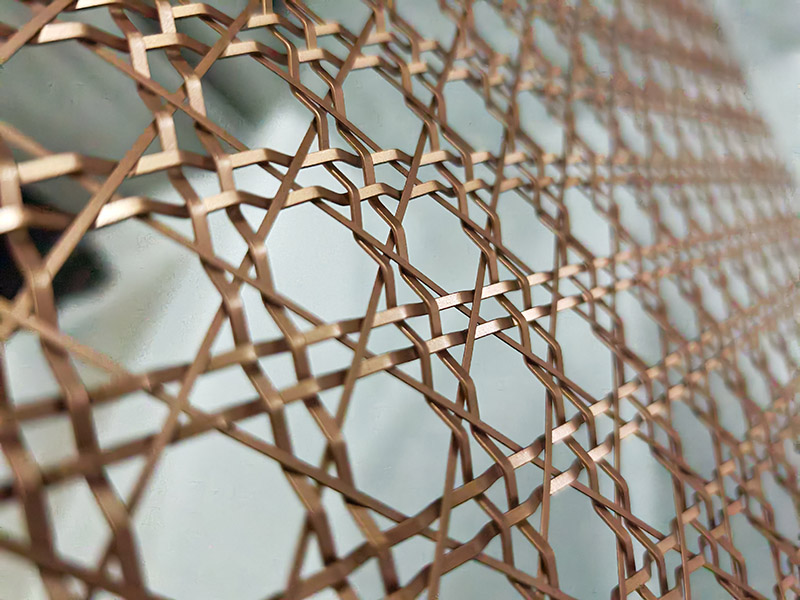

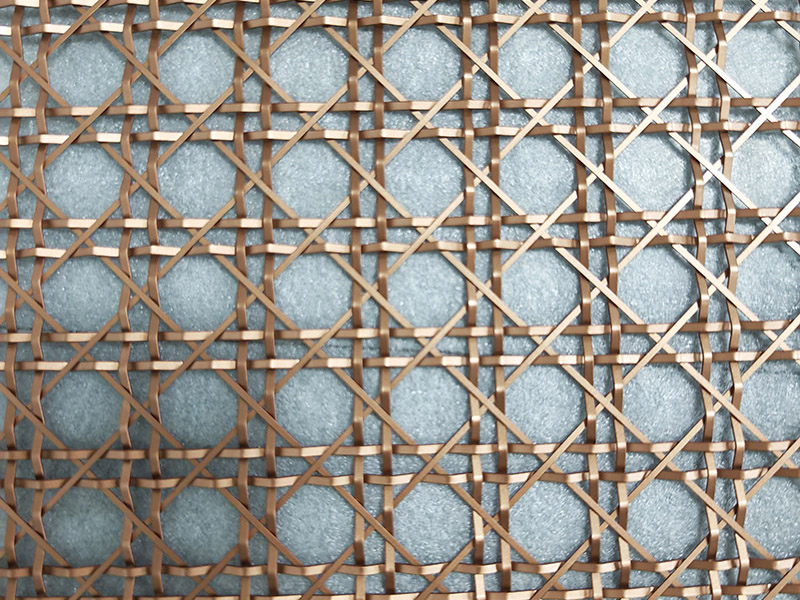

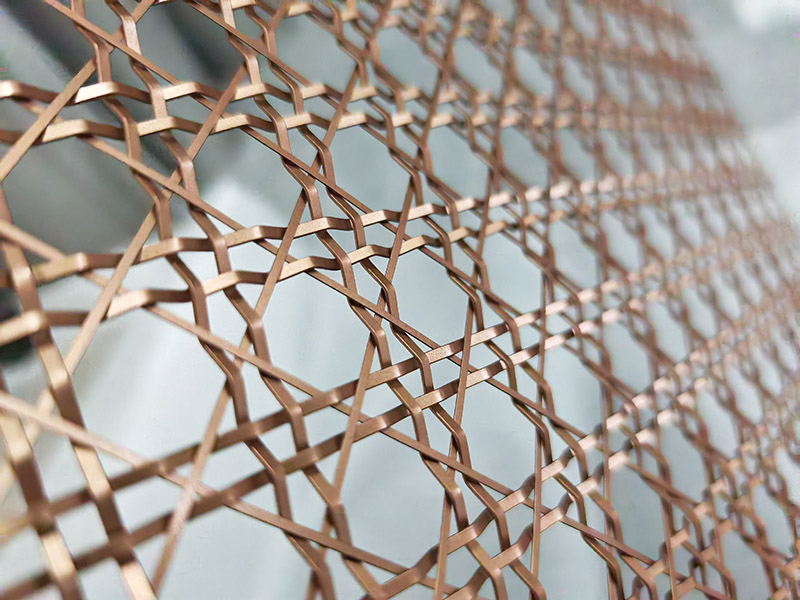

VISION-GRID-3809 – Unmatched Openness, Effortless Elegance VISION-GRID-3809 redefines transparency in architectural mesh. With an extraordinary 76% open area, this stainless steel mesh allows light, air, and views to flow through with almost no obstruction. The intelligent combination of two wire sizes and two opening patterns creates a dynamic, airy aesthetic that feels less like a barrier and more like a gentle visual filter.

Product Name: VISION-GRID-3809

Material:Stainless Steel

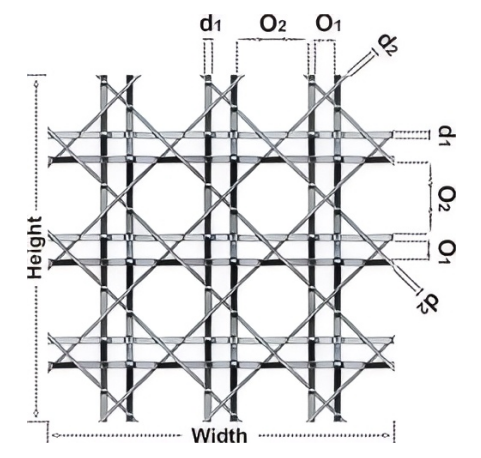

Wire Size (d1): 3.8 mm (.15 in)

Opening (O1):9 mm (0.35 in)

Wire Size (d2): 2.0 mm (.079 in)

Opening (O2): 36 mm (1.42 in)

Overall thickness: 5 mm (0.2 in)

Open Area:76%

Approx. Weight, kg/m2 (lb/ft2): 4.6 (0.94)
