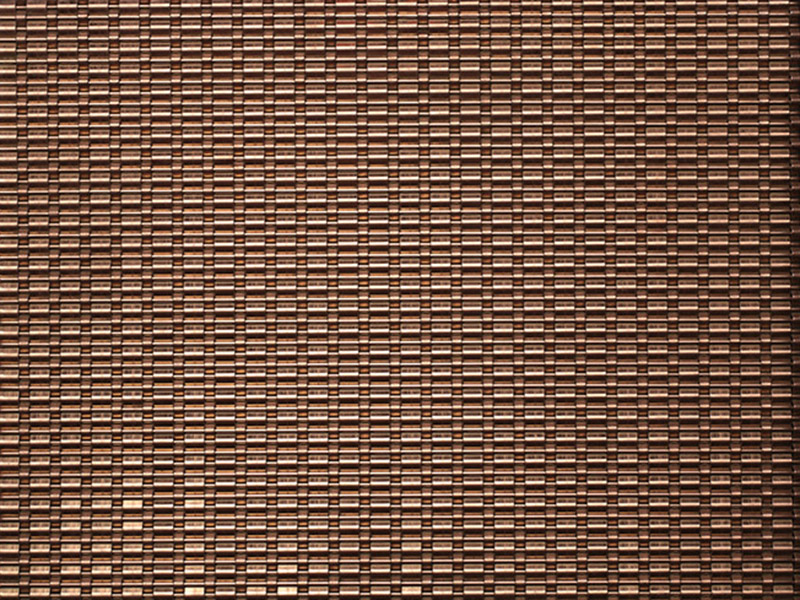

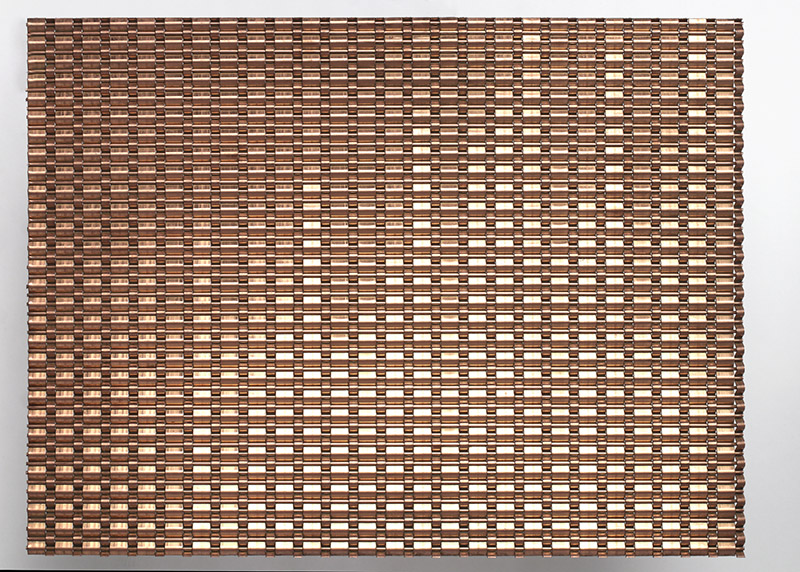

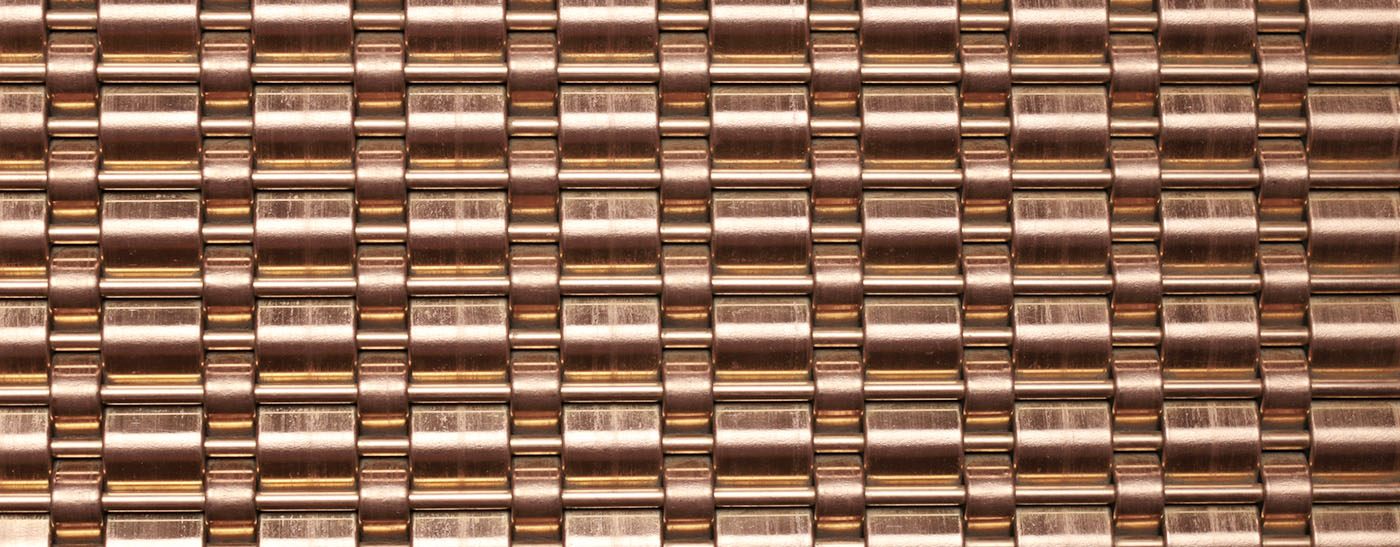

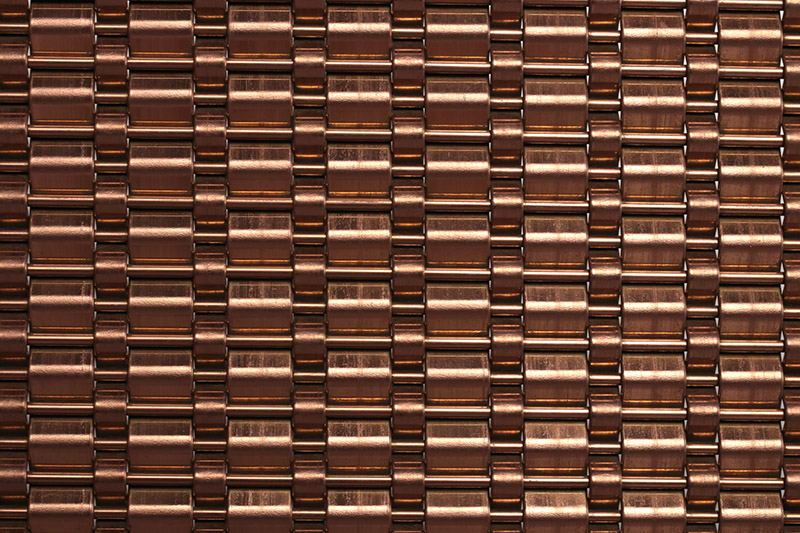

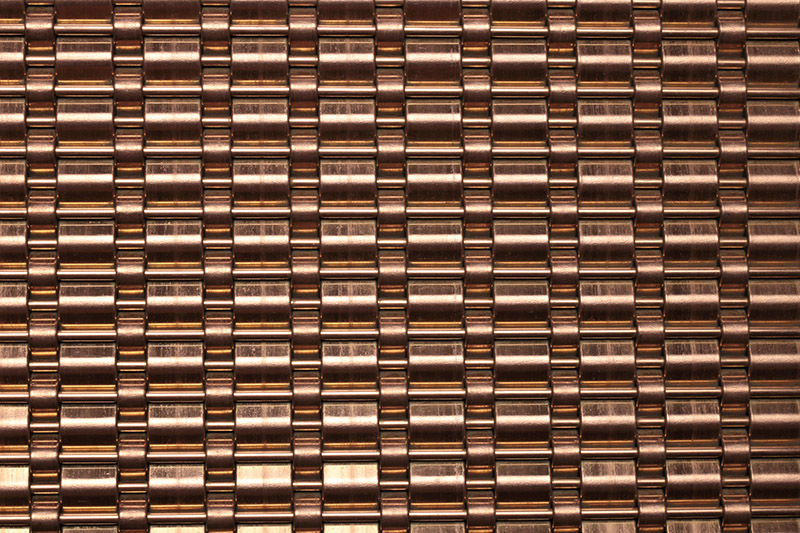

CORTEX 6021 – Dual Flat Wire Solid Stainless Steel Mesh CORTEX 6021 is a zero open area stainless steel architectural mesh featuring a distinctive dual flat wire design. Combining two different flat wire sizes with round cross wires, this mesh creates a rich, textured solid surface that offers both visual interest and exceptional structural performance.
Product Name:CORTEX 6021
Material: Stainless Steel

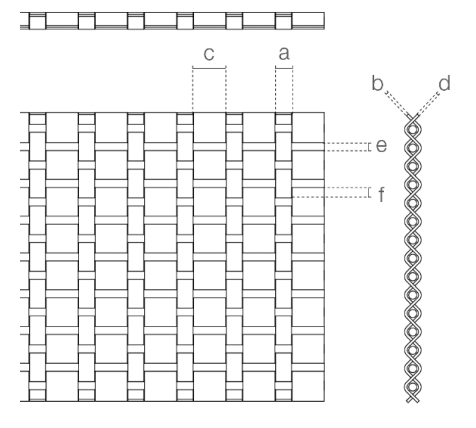

Small flat wire width (a):6.02 mm(.237in)
Small flat wire thickness (b): 1 mm (.039in)
Large flat wire width (c):12.05 mm(.474in)
Large flat wire thickness (d): 1 mm (.039in)
Round cross wire diameter (e): 3 mm(.118in)
Round cross wire pitch (f): 3.9 mm(0.154in)
Open Area,:0%
Approx. Weight: 18kg/m2 (3.686 lb/ft2)
Optional Finish: Antique, metal plating, electroplate, powder coating, painting, matte, etc.
Optional Color:Natural, antique brass, antique copper, gold, rose gold, black, various colors
