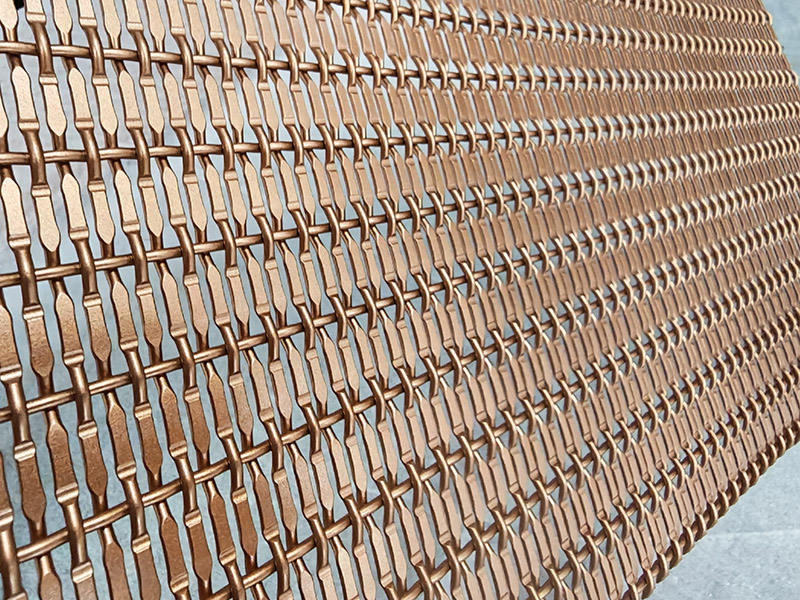

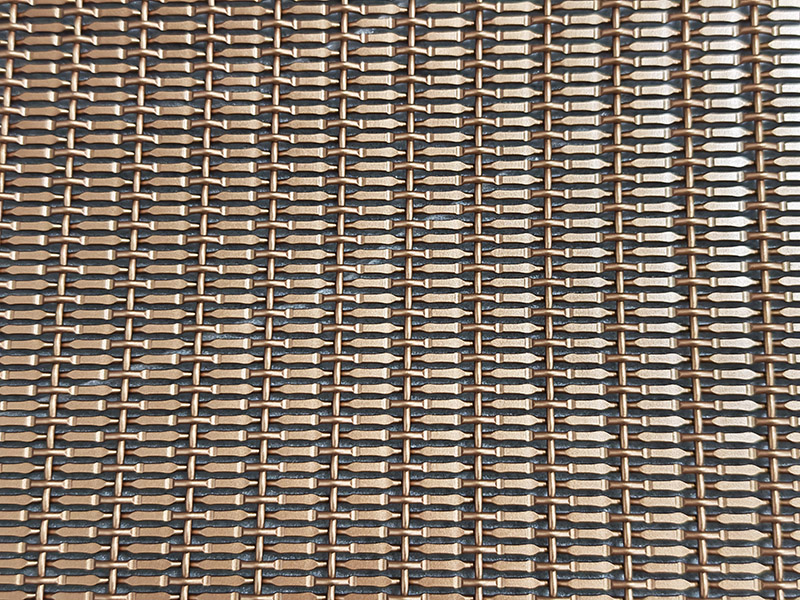

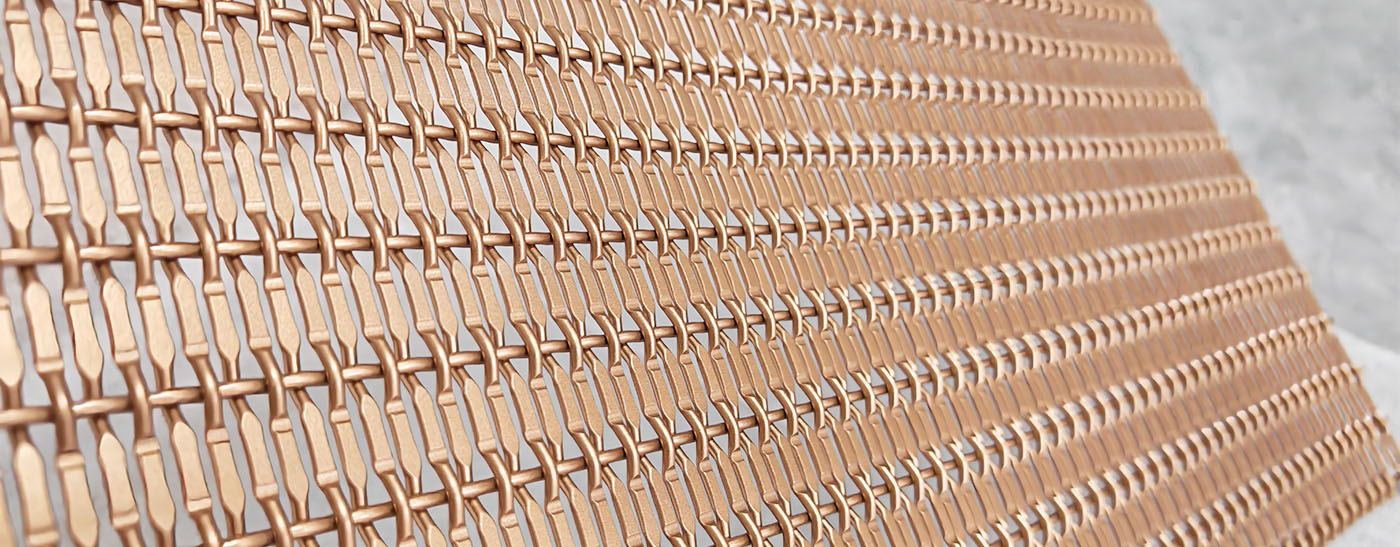

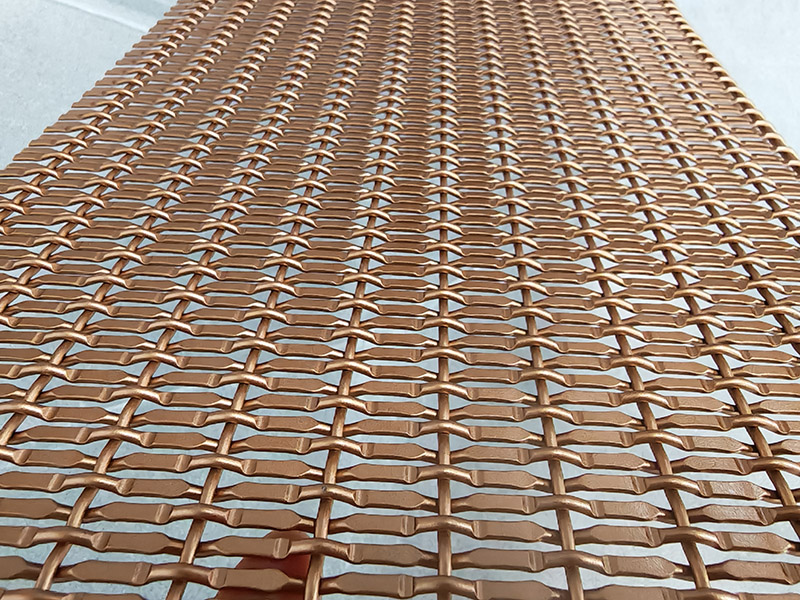

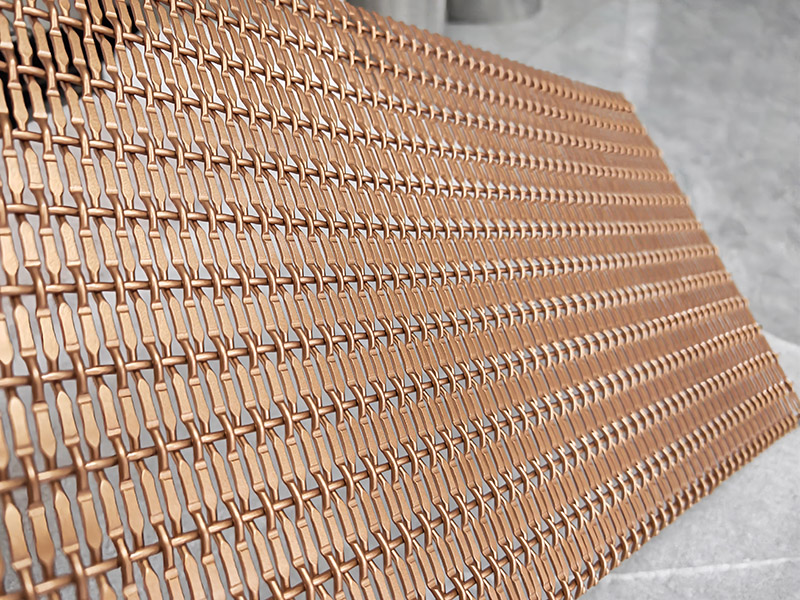

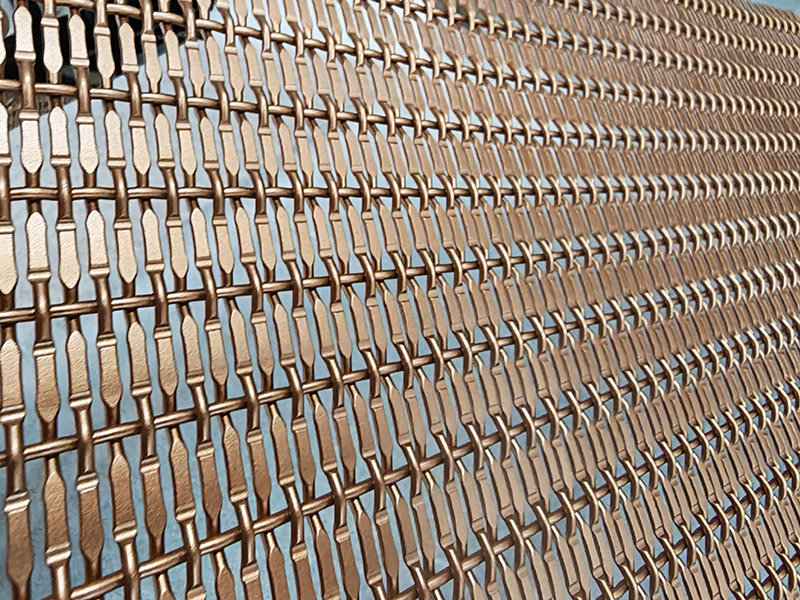

At the intersection of architecture and design, a material is reshaping the very concept of spatial boundaries—serving simultaneously as structure and ornament, division and connection. Architectural Wire Mesh, meticulously woven from metal strands, opens infinite possibilities for building surfaces.
Product Name:ARCH-GRID 1057
Material:SS 304/316

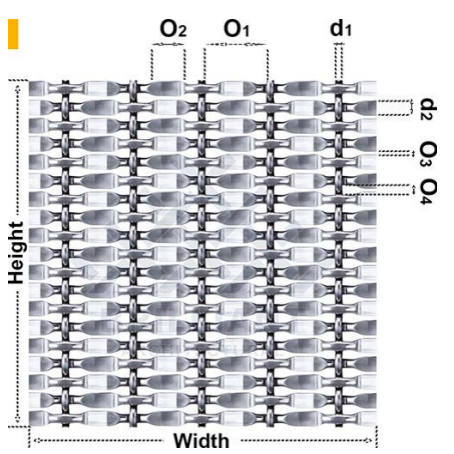

Wire Size (d1), mm (in):1.8 (.071)
Wire Size (d2), mm (in):3 (.118)
Opening (O1), mm (in): 10.5 (.413)
Opening (O2), mm (in):7 (.276)
Overall thickness, mm (in):3.5 (.138)
Open Area:28%
Approx. Weight, kg/m2 (lb/ft2):7 (1.43)
